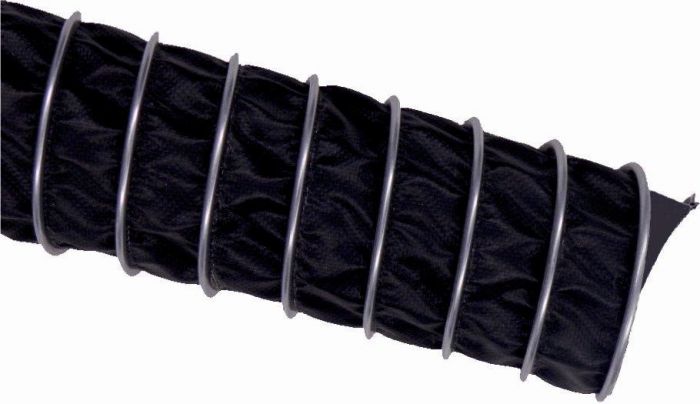

Gripflex HyTef el

Produkt Features

temperature range:: -35 °C up to +175 °C, peak up to 190 °C
material:: - outside: CSM-coated polyester fabric; - inner ply: electrically conductive PTFE film; - external galvanised steel helix
properties:: - inner ply Ro ≤ 10⁶ Ω, electrically conductive; - good resistance against chemicals; - good resistance against aging; - very good UV & ozone resistance; - very flexible; - compressible up to 1:6; - small bend radius; - robust; - vibration proof; - high tensile strength; - protected by outer helix
applications:: - extraction of corrossive media; - chemical and petrochemical industry
delivery forms:: - Ø 50 up to 900 mm; - colour: outside and inside black; - standard lengths: 2 m up to 10 m
on request:: - short lengths (+20,00 € setup costs); - lengths up to 20 m; - stainless steel helix; - in different qualities; - custom made solutions

Details

inner ø at mm	bending radius at mm	working pressure at bar	vacuum at mm WS	roll length at m	weight in kg/m	article number	delivery time
50	30	0,900	4100	2 - 10	0,400	158-050-0300	about 2 weeks
60	36	0,780	2800	2 - 10	0,500	158-060-0300	about 2 weeks
65	39	0,680	2400	2 - 10	0,500	158-065-0300	about 2 weeks
70	42	0,670	2100	2 - 10	0,500	158-070-0300	about 2 weeks
75	45	0,620	1800	2 - 10	0,600	158-075-0300	about 2 weeks
80	48	0,610	1600	2 - 10	0,600	158-080-0300	about 2 weeks
90	54	0,560	1300	2 - 10	0,600	158-090-0300	about 2 weeks
100	60	0,510	1000	2 - 10	0,600	158-100-0300	about 2 weeks
110	66	0,480	800	2 - 10	0,700	158-110-0300	about 2 weeks
120	72	0,360	700	2 - 10	0,700	158-120-0300	about 2 weeks
125	75	0,330	700	2 - 10	0,800	158-125-0300	about 2 weeks
130	78	0,280	600	2 - 10	0,800	158-130-0300	about 2 weeks
140	84	0,250	500	2 - 10	0,800	158-140-0300	about 2 weeks
150	90	0,220	400	2 - 10	0,900	158-150-0300	about 2 weeks
160	96	0,210	400	2 - 10	0,900	158-160-0300	about 2 weeks
170	102	0,190	400	2 - 10	0,900	158-170-0300	about 2 weeks
175	105	0,185	300	2 - 10	1,000	158-175-0300	about 2 weeks
180	108	0,172	300	2 - 10	1,000	158-180-0300	about 2 weeks
200	120	0,148	300	2 - 10	1,200	158-200-0300	about 2 weeks
215	129	0,128	200	2 - 10	1,300	158-215-0300	about 2 weeks
225	135	0,115	200	2 - 10	1,400	158-225-0300	about 2 weeks
250	175	0,100	200	2 - 10	1,600	158-250-0300	about 2 weeks
275	193	0,080	100	2 - 10	1,900	158-275-0300	about 2 weeks
300	210	0,070	100	2 - 10	2,100	158-300-0300	about 2 weeks
315	221	0,062	100	2 - 10	2,100	158-315-0300	about 2 weeks
325	228	0,059	100	2 - 10	2,200	158-325-0300	about 2 weeks
350	245	0,056	80	2 - 10	2,500	158-350-0300	about 2 weeks
375	263	0,050	70	2 - 10	2,900	158-375-0300	about 2 weeks
400	280	0,047	60	2 - 10	3,100	158-400-0300	about 2 weeks
450	360	0,045	50	2 - 10	3,600	158-450-0300	about 2 weeks
500	400	0,043	40	2 - 10	4,100	158-500-0300	about 2 weeks
600	480	0,039	30	2 - 10	5,100	158-600-0300	about 2 weeks
700	560	0,031	20	2 - 10	6,000	158-700-0300	about 2 weeks
800	640	0,022	20	2 - 10	6,900	158-800-0300	about 2 weeks
900	720	0,016	10	2 - 10	7,800	158-900-0300	about 2 weeks
all data at about +23 °C

CSM-coated polyester fabric / electrically conductive PTFE film
