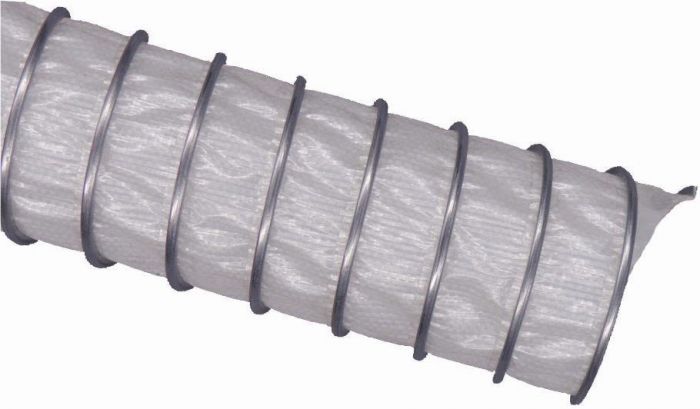

Gripflex PeTef el

Produkt Features

temperature range:: -40 °C up to +80 °C
material:: - outer ply: PE-coated PE fabric; - inner ply: el. conductive PTFE film; - external galvanised steel helix
properties:: - inner ply el. conductive Ro ≤ 10⁶ Ω; - very good chemical resistance; - very good UV & ozon resistance; - good resistance against aging; - very robust; - very good tear strength; - vibration proof; - very flexible; - compressible up to 1:6
applications:: - extraction of corrossive media; - extraction of fumes of solvents & paint mist
delivery forms:: - Ø 50 up to 900 mm; - colour: outside: transparent; inside: black; - standard lengths: 2 m up to 10 m
on request:: - Gripflex PeTef - with FDA conform inner ply; - short lengths (+20,00 € setup costs); - lenghts up to 20 m; - stainless steel helix; - in different qualities; - custom made solutions

Details

inner ø at mm	bending radius at mm	working pressure at bar	vacuum at mm WS	roll length at m	weight in kg/m	article number	delivery time
50	30	0,850	3300	2 - 10	0,400	108-050-0300	about 2 weeks
60	36	0,680	2200	2 - 10	0,500	108-060-0300	about 2 weeks
65	39	0,590	1900	2 - 10	0,500	108-065-0300	about 2 weeks
70	42	0,530	1600	2 - 10	0,500	108-070-0300	about 2 weeks
75	45	0,470	1400	2 - 10	0,600	108-075-0300	about 2 weeks
80	48	0,430	1300	2 - 10	0,600	108-080-0300	about 2 weeks
90	54	0,355	1000	2 - 10	0,600	108-090-0300	about 2 weeks
100	60	0,300	800	2 - 10	0,600	108-100-0300	about 2 weeks
110	66	0,258	700	2 - 10	0,700	108-110-0300	about 2 weeks
120	72	0,224	600	2 - 10	0,700	108-120-0300	about 2 weeks
125	75	0,210	500	2 - 10	0,800	108-125-0300	about 2 weeks
130	78	0,197	500	2 - 10	0,800	108-130-0300	about 2 weeks
140	84	0,140	400	2 - 10	0,800	108-140-0300	about 2 weeks
150	90	0,157	400	2 - 10	0,900	108-150-0300	about 2 weeks
160	96	0,140	300	2 - 10	0,900	108-160-0300	about 2 weeks
170	102	0,128	300	2 - 10	0,900	108-170-0300	about 2 weeks
175	105	0,123	300	2 - 10	1,000	108-175-0300	about 2 weeks
180	108	0,117	300	2 - 10	1,000	108-180-0300	about 2 weeks
200	120	0,100	200	2 - 10	1,200	108-200-0300	about 2 weeks
215	129	0,090	200	2 - 10	1,300	108-215-0300	about 2 weeks
225	135	0,080	200	2 - 10	1,400	108-225-0300	about 2 weeks
250	175	0,070	100	2 - 10	1,600	108-250-0300	about 2 weeks
275	193	0,060	100	2 - 10	1,900	108-275-0300	about 2 weeks
300	210	0,050	90	2 - 10	2,100	108-300-0300	about 2 weeks
315	221	0,050	80	2 - 10	2,100	108-315-0300	about 2 weeks
325	228	0,050	80	2 - 10	2,200	108-325-0300	about 2 weeks
350	245	0,040	70	2 - 10	2,500	108-350-0300	about 2 weeks
375	263	0,040	60	2 - 10	2,900	108-375-0300	about 2 weeks
400	280	0,030	50	2 - 10	3,100	108-400-0300	about 2 weeks
450	360	0,030	40	2 - 10	3,600	108-450-0300	about 2 weeks
500	400	0,020	30	2 - 10	4,100	108-500-0300	about 2 weeks
600	480	0,020	20	2 - 10	5,100	108-600-0300	about 2 weeks
700	560	0,010	20	2 - 10	6,000	108-700-0300	about 2 weeks
800	640	0,010	10	2 - 10	6,900	108-800-0300	about 2 weeks
900	720	0,010	10	2 - 10	7,800	108-900-0300	about 2 weeks
all data at about +23 °C

PE-coated PE fabric, electrically conductive PTFE film
