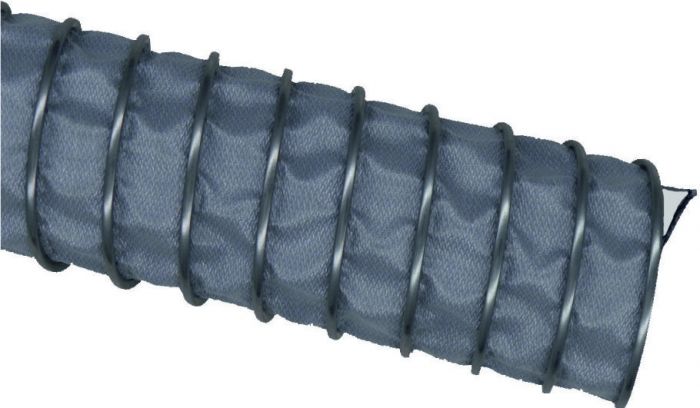

Gripflex SilTef el

Produkt Features

temperature range:: -50 °C up to +250 °C
material:: - outer ply: silicone-coated glass fabric; - inner ply: PTFE film; - external galvanised steel helix
properties:: - inner ply Ro ≤ 10⁶ Ω; - anti-adhesive; - very good chemical resistance; - good resistance against aging; - very good tear strength; - hardly inflammable; - weather resistant; - very flexible; - compressible up to 1:6
applications:: - extraction of paint mist, solvent ...
delivery forms:: - Ø 50 up to 900 mm; - colour: outside - grey, inside - black; - standard lengths: 2 m up to 10 m
on request:: - short lengths (+20,00 € setup costs); - lengths up to 20 m; - stainless steel helix; - in different qualities; - custom made solutions

Details

inner ø at mm	bending radius at mm	working pressure at bar	vacuum at mm WS	roll length at m	weight in kg/m	article number	delivery time
50	30	0,900	4500	2 - 10	0,500	167-050-0300	about 2 weeks
60	36	0,780	3200	2 - 10	0,600	167-060-0300	about 2 weeks
65	39	0,680	2700	2 - 10	0,700	167-065-0300	about 2 weeks
70	42	0,670	2300	2 - 10	0,700	167-070-0300	about 2 weeks
75	45	0,620	2000	2 - 10	0,800	167-075-0300	about 2 weeks
80	48	0,610	1800	2 - 10	0,800	167-080-0300	about 2 weeks
90	54	0,560	1400	2 - 10	0,900	167-090-0300	about 2 weeks
100	60	0,510	1100	2 - 10	1,000	167-100-0300	about 2 weeks
110	66	0,480	900	2 - 10	1,100	167-110-0300	about 2 weeks
120	72	0,360	800	2 - 10	1,100	167-120-0300	about 2 weeks
125	75	0,330	700	2 - 10	1,200	167-125-0300	about 2 weeks
130	78	0,280	700	2 - 10	1,200	167-130-0300	about 2 weeks
140	84	0,250	600	2 - 10	1,300	167-140-0300	about 2 weeks
150	90	0,220	500	2 - 10	1,300	167-150-0300	about 2 weeks
160	96	0,210	400	2 - 10	1,300	167-160-0300	about 2 weeks
170	102	0,190	400	2 - 10	1,400	167-170-0300	about 2 weeks
175	105	0,185	400	2 - 10	1,400	167-175-0300	about 2 weeks
180	108	0,172	300	2 - 10	1,400	167-180-0300	about 2 weeks
200	120	0,148	300	2 - 10	1,600	167-200-0300	about 2 weeks
215	129	0,128	300	2 - 10	1,800	167-215-0300	about 2 weeks
225	135	0,115	200	2 - 10	2,000	167-225-0300	about 2 weeks
250	175	0,100	200	2 - 10	2,100	167-250-0300	about 2 weeks
275	193	0,080	200	2 - 10	2,300	167-275-0300	about 2 weeks
300	210	0,070	100	2 - 10	2,400	167-300-0300	about 2 weeks
315	221	0,062	100	2 - 10	2,600	167-315-0300	about 2 weeks
325	228	0,059	100	2 - 10	2,800	167-325-0300	about 2 weeks
350	245	0,056	90	2 - 10	3,300	167-350-0300	about 2 weeks
375	263	0,050	80	2 - 10	3,500	167-375-0300	about 2 weeks
400	280	0,047	70	2 - 10	3,800	167-400-0300	about 2 weeks
450	360	0,045	60	2 - 10	4,200	167-450-0300	about 2 weeks
500	400	0,043	50	2 - 10	4,700	167-500-0300	about 2 weeks
600	480	0,039	30	2 - 10	5,900	167-600-0300	about 2 weeks
700	560	0,031	20	2 - 10	6,900	167-700-0300	about 2 weeks
800	640	0,022	20	2 - 10	7,600	167-800-0300	about 2 weeks
900	720	0,016	10	2 - 10	8,200	167-900-0300	about 2 weeks
all data at about +23 °C

silicone-coated glass fabric / PTFE film, anti-adhesive
