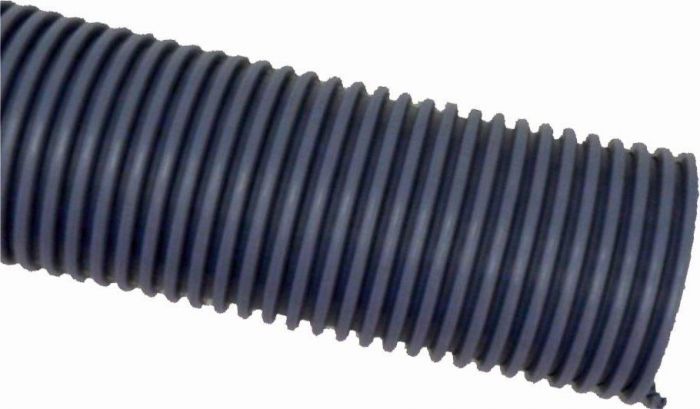

EVAFlex grey

domestic and ind. vacuum cleaner, grey

other versions

temperature range:: -40 °C up to +60 °C
material:: - EVA hose wall
properties:: - good resistance against oil, alcalis and acids; - air tight and water tight; - crash proof; - UV and ozone resistant; - very flexible and lightweight
applications:: - domestic and industrial vacuum cleaner; - extraction of chemical vapour
delivery forms:: - Ø 25 mm - 10 m/roll; - Ø 32, 38, 45, 50 mm - 20 m/roll; - Ø 63 mm - 15 m/roll; - colour: grey
on request:: - antistatic: Ro ≤ 10¹¹ Ω / Ro ≤ 10⁸ Ω; - conductive: Ro ≤ 10⁶ Ω; - short lengths; - custom made: for example with connecting parts

inner ø at mm	bending radius at mm	vacuum at mm WS	roll length at m	weight in kg/m	article number	delivery time at days
25	55	5100	10	0,190	105-025-0000	about 5-8
32	70	5100	20	0,220	105-032-0000	about 5-8
38	80	5100	20	0,295	105-038-0000	about 5-8
45	95	5100	20	0,365	105-045-0000	about 5-8
50	105	4100	20	0,420	105-050-0000	about 5-8
63	135	3100	15	0,580	105-063-0000	about 5-8
all data at about +23 °C
