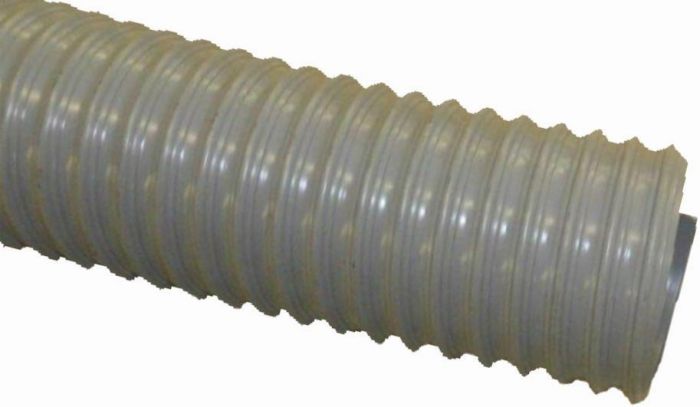

PVCFlex H

work. temperature:: 0 °C up to +70 °C
material:: - PVC wall with spring steel spiral
properties:: - smooth inside; - very flexible and lightweight
application:: - suction of air, fumes and dust; - air conditioning; - liquid drain hose
delivery forms:: - Ø 20 bis 500 mm; - standard roll length: 10 and 15 m; - colour: grey
on request:: - colour: transparent; - short lengths; - custom made: for example with connecting parts

inner ø at mm	wall thickness at mm	bending radius at mm	working pressure at bar	vacuum at mm WS	roll length at m	weight in kg/m	article number	delivery time at days
20	1,2	30	2,400	8700	10 / 15	0,220	102-020-5000	about 5-8
30	1,2	45	2,200	8200	10 / 15	0,360	102-030-5000	about 5-8
40	1,2	60	2,100	6100	10 / 15	0,410	102-040-5000	about 5-8
50	1,2	75	1,900	4100	10 / 15	0,590	102-050-5000	about 5-8
60	1,2	90	1,600	3600	10 / 15	0,700	102-060-5000	about 5-8
70	1,2	105	1,300	3000	10 / 15	0,820	102-070-5000	about 5-8
80	1,2	120	1,200	3000	10 / 15	0,940	102-080-5000	about 5-8
100	1,2	150	1,000	2600	10 / 15	1,280	102-100-5000	about 5-8
120	1,2	180	0,850	2600	10 / 15	1,450	102-120-5000	about 5-8
125	1,2	185	0,750	2000	10 / 15	1,600	102-125-5000	about 5-8
150	1,5	225	0,500	1800	10 / 15	1,950	102-150-5000	about 5-8
175	1,5	260	0,350	1600	10 / 15	2,280	102-175-5000	about 5-8
200	1,5	300	0,300	1500	10 / 15	2,600	102-200-5000	about 5-8
250	1,5	375	0,200	1200	10 / 15	3,730	102-250-5000	about 5-8
300	1,5	450	0,150	1000	10 / 15	4,470	102-300-5000	about 5-8
350	1,5	525	0,100	900	10 / 15	5,220	102-350-5000	about 5-8
400	1,5	600	0,100	800	10 / 15	5,960	102-400-5000	about 5-8
450	1,5	675	0,080	600	10 / 15	6,710	102-450-5000	about 5-8
500	1,5	750	0,050	400	10 / 15	7,200	102-500-5000	about 5-8
all data at about +23 °C
