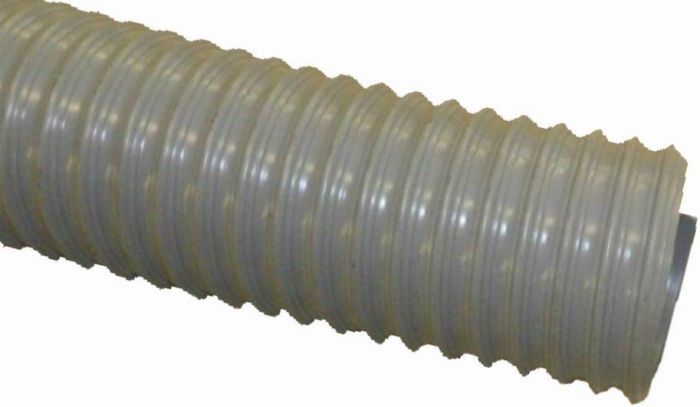

PVCFlex L

work. temperature:: 0 °C up to +70 °C
material:: - PVC wall with spring steel spiral
properties:: - smooth inside; - very flexible and lightweight
application:: - suction of air, fumes and dust; - air conditioning
delivery forms:: - Ø 13 bis 400 mm; - standard roll length: 10 and 15 m; - colour: grey
on request:: - colour: transparent; - antistatic Ro ≤ 10⁸ Ω (black); - short lengths; - custom made: for example with connecting parts

inner ø at mm	wall thickness at mm	bending radius at mm	working pressure at bar	vacuum at mm WS	roll length at m	weight in kg/m	article number	delivery time at days
13	0,5	13	2,500	8200	10 / 15	0,070	102-013-2000	about 5-8
20	0,5	20	1,900	5600	10 / 15	0,110	102-020-2000	about 5-8
25	0,5	25	1,700	4600	10 / 15	0,170	102-025-2000	about 5-8
30	0,5	30	1,500	4000	10 / 15	0,210	102-030-2000	about 5-8
40	0,5	40	1,400	3000	10 / 15	0,240	102-040-2000	about 5-8
50	0,5	50	1,300	2900	10 / 15	0,29	102-050-2000	about 5-8
60	0,5	60	1,100	2600	10 / 15	0,500	102-060-2000	about 5-8
70	0,5	70	1,000	2600	10 / 15	0,570	102-070-2000	about 5-8
75	0,5	75	0,800	2000	10 / 15	0,630	102-075-2000	about 5-8
80	0,5	80	0,700	1800	10 / 15	0,700	102-080-2000	about 5-8
100	0,6	100	0,600	1500	10 / 15	0,790	102-100-2000	about 5-8
120	0,6	120	0,500	1300	10 / 15	0,850	102-120-2000	about 5-8
125	0,6	125	0,400	1200	10 / 15	0,980	102-125-2000	about 5-8
140	0,6	140	0,300	1200	10 / 15	1,050	102-140-2000	about 5-8
150	0,6	150	0,250	1000	10 / 15	1,180	102-150-2000	about 5-8
175	0,6	175	0,250	1000	10 / 15	1,480	102-175-2000	about 5-8
200	0,6	200	0,200	900	10 / 15	1,690	102-200-2000	about 5-8
250	0,6	250	0,150	800	10 / 15	2,100	102-250-2000	about 5-8
300	0,6	300	0,120	600	10 / 15	2,520	102-300-2000	about 5-8
350	0,6	350	0,100	600	10 / 15	2,930	102-350-2000	about 5-8
400	0,6	400	0,080	200	10 / 15	3,390	102-400-2000	about 5-8
all data at about +23 °C

spring steel spiral, smooth flow channel
