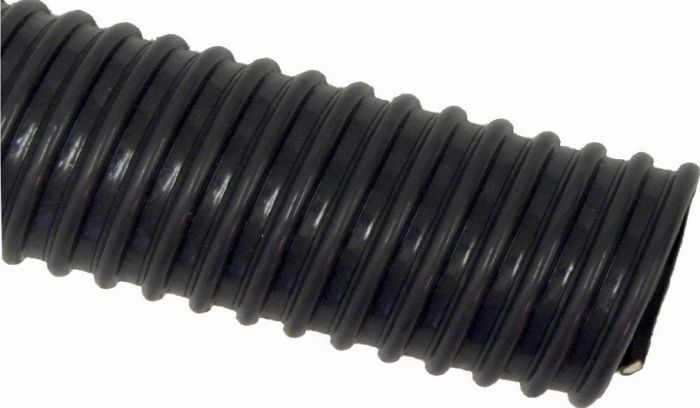

PVCFlex-P M

Produkt Features

temperature range:: -10 °C up to +50 °C
material:: - PVC wall with rigid PVC spiral
properties:: - smooth inside; - flexible and lightweight
applications:: - suction of air, fumes and dust; - air conditioning; - liquid drain hose
delivery forms:: - Ø 13 up to 20 mm - standard rolls per 30 m; - Ø 25 up to 80 mm - standard rolls per 50 m; - Ø 90 up to 140 mm - standard rolls per 30 m; - Ø 150 up to 203 mm - standard rolls per 20 m; - Ø 250 up to 300 mm - standard rolls per 10 m; - color: dark grey
on request:: - short lengths; - custom made: for example with connecting parts

Details

inner ø at mm	wall thickness at mm	bending radius at mm	vacuum at mm WS	roll length at m	weight in kg/m	article number	delivery time at days
13	0,8	20	4600	30	0,100	103-013-4000	about 5-8
16	0,8	22	4600	30	0,110	103-016-4000	about 5-8
19	0,8	25	4100	30	0,120	103-019-4000	about 5-8
20	0,8	26	4100	30	0,130	103-020-4000	about 5-8
25	1,0	32	4100	50	0,160	103-025-4000	about 5-8
30	1,0	35	3600	50	0,210	103-030-4000	about 5-8
32	1,0	40	3600	50	0,230	103-032-4000	about 5-8
35	1,0	42	3600	50	0,260	103-035-4000	about 5-8
38	1,0	45	3100	50	0,300	103-038-4000	about 5-8
40	1,0	50	3100	50	0,320	103-040-4000	about 5-8
45	1,0	55	3100	50	0,400	103-045-4000	about 5-8
50	1,0	60	3100	50	0,490	103-050-4000	about 5-8
51	1,0	60	3100	50	0,490	103-051-4000	about 5-8
55	1,0	65	3100	50	0,540	103-055-4000	about 5-8
60	1,0	68	3100	50	0,590	103-060-4000	about 5-8
63	1,0	70	3100	50	0,620	103-063-4000	about 5-8
70	1,2	85	3100	50	0,680	103-070-4000	about 5-8
76	1,2	100	2600	50	0,760	103-076-4000	about 5-8
80	1,2	140	2600	50	0,870	103-080-4000	about 5-8
90	1,2	150	2600	30	1,020	103-090-4000	about 5-8
100	1,2	155	2600	30	1,220	103-100-4000	about 5-8
102	1,2	155	2600	30	1,240	103-102-4000	about 5-8
110	1,3	170	2600	30	1,360	103-110-4000	about 5-8
120	1,3	180	2600	30	1,460	103-120-4000	about 5-8
127	1,3	190	2600	30	1,550	103-127-4000	about 5-8
130	1,3	190	2600	30	1,600	103-130-4000	about 5-8
140	1,3	195	2000	30	1,750	103-140-4000	about 5-8
150	1,3	200	2000	20	1,940	103-150-4000	about 5-8
152	1,3	200	2000	20	1,950	103-152-4000	about 5-8
160	1,5	205	15007	20	2,130	103-160-4000	about 5-8
170	1,5	210	1500	20	2,270	103-170-4000	about 5-8
180	1,5	220	1500	20	2,420	103-180-4000	about 5-8
200	1,5	240	1500	20	2,620	103-200-4000	about 5-8
203	1,5	240	1500	20	2,620	103-203-4000	about 5-8
250	1,5	280	1000	10	3,500	103-250-4000	about 5-8
300	1,5	330	1000	10	4,37	103-300-4000	about 5-8
all data at about +23 °C

rigid PVC spiral, dark grey
