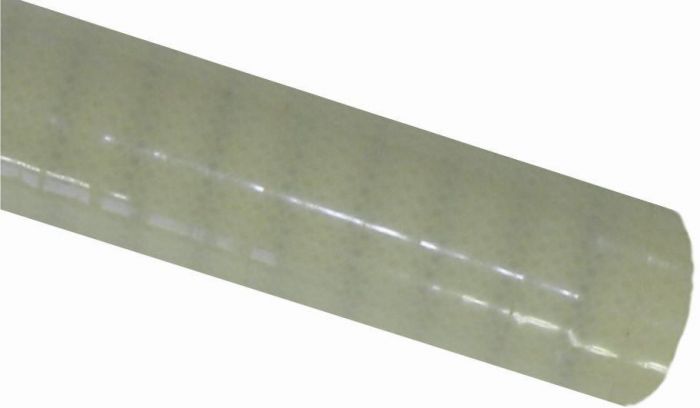

RadiaSil L food

Produkt Features

temperature range:: -60 °C up to +180 °C
material:: - 3-ply; - silicone coated polyester fabric; - ca. 4,3 mm wall thickn. (+1/-0,5mm)
properties:: - food conform acc. to FDA, BGA; - good chemical resistance; - good resistance against coolant; - good pressure resistance at low temperatures; - very good oxygen tightness; - good resistance against aging and ozone; - limited resistance against oil
applications:: - for cooling and heating plants; - for food industry
delivery forms:: - Ø 6 up to 152 mm; - colour: opaque; - length: 4 m; - other diameter
on request:: - short lengths; - assembled with couplings

Details

inner ø at mm	outer ø at mm	working pressure at bar	bursting pressure at bar	roll length at m	weight in kg/m	article number	delivery time
6	15	16,100	48,300	4	0,190	274-006-2400	about 2 - 3 weeks
8	17	14,000	42,000	4	0,235	274-008-2400	about 2 - 3 weeks
10	19	11,500	34,500	4	0,280	274-010-2400	about 2 - 3 weeks
11	20	11,000	33,000	4	0,300	274-011-2400	about 2 - 3 weeks
13	22	9,700	29,100	4	0,345	274-013-2400	about 2 - 3 weeks
15	24	8,700	26,100	4	0,385	274-015-2400	about 2 - 3 weeks
16	25	8,200	24,600	4	0,405	274-016-2400	about 2 - 3 weeks
18	27	7,500	22,500	4	0,445	274-018-2400	about 2 - 3 weeks
19	28	7,200	21,600	4	0,460	274-019-2400	about 2 - 3 weeks
20	29	6,900	20,700	4	0,480	274-020-2400	about 2 - 3 weeks
22	31	6,100	18,300	4	0,515	274-022-2400	about 2 - 3 weeks
25	34	5,900	17,700	4	0,570	274-025-2400	about 2 - 3 weeks
28	37	5,400	16,200	4	0,625	274-028-2400	about 2 - 3 weeks
29	38	5,200	15,600	4	0,645	274-029-2400	about 2 - 3 weeks
30	39	5,100	15,300	4	0,660	274-030-2400	about 2 - 3 weeks
32	41	4,800	14,400	4	0,690	274-032-2400	about 2 - 3 weeks
34	43	4,600	13,800	4	0,725	274-034-2400	about 2 - 3 weeks
35	44	4,500	13,500	4	0,740	274-035-2400	about 2 - 3 weeks
38	47	4,200	12,600	4	0,790	274-038-2400	about 2 - 3 weeks
40	49	4,100	12,300	4	0,820	274-040-2400	about 2 - 3 weeks
41	50	4,000	12,000	4	0,835	274-041-2400	about 2 - 3 weeks
42	51	3,900	11,700	4	0,855	274-042-2400	about 2 - 3 weeks
44	53	3,800	11,400	4	0,885	274-044-2400	about 2 - 3 weeks
45	54	3,700	11,100	4	0,900	274-045-2400	about 2 - 3 weeks
48	57	3,500	10,500	4	0,945	274-048-2400	about 2 - 3 weeks
50	59	3,400	10,200	4	0,980	274-050-2400	about 2 - 3 weeks
51	60	3,400	10,200	4	0,995	274-051-2400	about 2 - 3 weeks
all data at about +23 °C

food conform, 3-ply, silicone coated polyester fabric
