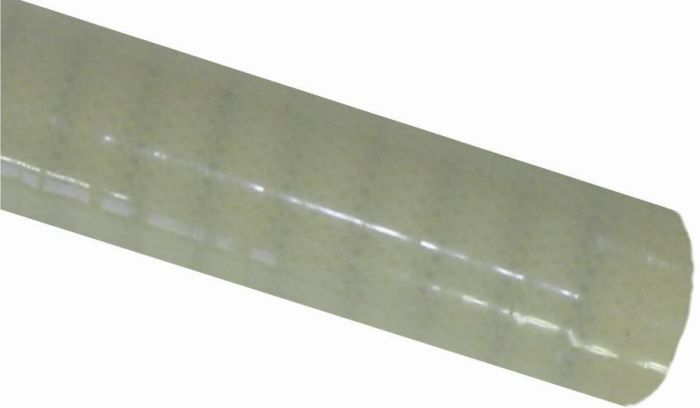

RadiaSil M food

temperature range:: -60 °C up to +180 °C
material:: - 4-ply; - silicone coated polyester fabric; - ca. 5,3 mm wall thickn. (+1/-0,5mm)
properties:: - food conform acc. to FDA, BGA; - good chemical resistance; - good resistance against coolant; - good pressure resistance at low temperatures; - very good oxygen tightness; - good resistance against aging and ozone; - limited resistance against oil
applications:: - for cooling and heating plants; - for food industry
delivery forms:: - Ø 6 up to 152 mm; - colour: opaque; - length: 4 m, > Ø 76 mm - 1 m
on request:: - short length- assembled with couplings- other diameters

inner ø at mm	outer ø at mm	working pressure at bar	bursting pressure at bar	roll length at m	weight in kg/m	article number	delivery time
6	17	21,200	63,600	4	0,250	274-006-4400	about 2 - 3 weeks
8	19	17,300	51,900	4	0,290	274-008-4400	about 2 - 3 weeks
10	21	14,700	44,100	4	0,335	274-010-4400	about 2 - 3 weeks
13	24	12,200	36,600	4	0,405	274-013-4400	about 2 - 3 weeks
15	26	11,000	33,000	4	0,450	274-015-4400	about 2 - 3 weeks
16	27	10,500	31,500	4	0,470	274-016-4400	about 2 - 3 weeks
18	29	9,600	28,800	4	0,515	274-018-4400	about 2 - 3 weeks
19	30	9,300	27,900	4	0,540	274-019-4400	about 2 - 3 weeks
20	31	8,900	26,700	4	0,560	274-020-4400	about 2 - 3 weeks
22	33	8,300	24,900	4	0,605	274-022-4400	about 2 - 3 weeks
25	36	7,600	22,800	4	0,675	274-025-4400	about 2 - 3 weeks
28	39	7,000	21,000	4	0,740	274-028-4400	about 2 - 3 weeks
29	40	6,800	20,400	4	0,765	274-029-4400	about 2 - 3 weeks
30	41	6,600	19,800	4	0,785	274-030-4400	about 2 - 3 weeks
32	43	6,300	18,900	4	0,930	274-032-4400	about 2 - 3 weeks
34	45	6,100	18,300	4	0,875	274-034-4400	about 2 - 3 weeks
35	46	5,900	17,700	4	0,900	274-035-4400	about 2 - 3 weeks
38	49	5,600	16,800	4	0,965	274-038-4400	about 2 - 3 weeks
40	51	5,400	16,200	4	1,010	274-040-4400	about 2 - 3 weeks
42	53	5,200	15,600	4	1,055	274-042-4400	about 2 - 3 weeks
44	55	5,000	15,000	4	1,100	274-044-4400	about 2 - 3 weeks
45	56	4,900	14,700	4	1,120	274-045-4400	about 2 - 3 weeks
48	59	4,700	14,100	4	1,190	274-048-4400	about 2 - 3 weeks
50	61	4,600	13,800	4	1,235	274-050-4400	about 2 - 3 weeks
51	61	4,500	13,500	4	1,255	274-051-4400	about 2 - 3 weeks
54	65	4,300	12,900	4	1,325	274-054-4400	about 2 - 3 weeks
55	66	4,300	12,900	4	1,345	274-055-4400	about 2 - 3 weeks
57	68	4,200	12,600	4	1,390	274-057-4400	about 2 - 3 weeks
60	71	4,000	12,000	4	1,460	274-060-4400	about 2 - 3 weeks
62	73	3,900	11,700	4	1,505	274-062-4400	about 2 - 3 weeks
63	74	3,900	11,700	4	1,525	274-063-4400	about 2 - 3 weeks
65	76	3,800	11,400	4	1,570	274-065-4400	about 2 - 3 weeks
70	81	3,600	10,800	4	1,680	274-070-4400	about 2 - 3 weeks
75	86	3,400	10,200	4	1,795	274-076-4400	about 2 - 3 weeks
76	87	3,400	10,200	1	1,815	274-076-4400	about 2 - 3 weeks
80	91	3,300	9,900	1	1,905	274-080-4400	about 2 - 3 weeks
82	93	3,200	9,600	1	1,950	274-082-4400	about 2 - 3 weeks
85	96	3,100	9,300	1	2,020	274-085-4400	about 2 - 3 weeks
90	101	3,000	9,000	1	2,130	274-090-4400	about 2 - 3 weeks
100	111	2,800	8,400	1	2,355	274-100-4400	about 2 - 3 weeks
all data at about +23 °C

4-ply, silicone coated polyester fabric, food conform
