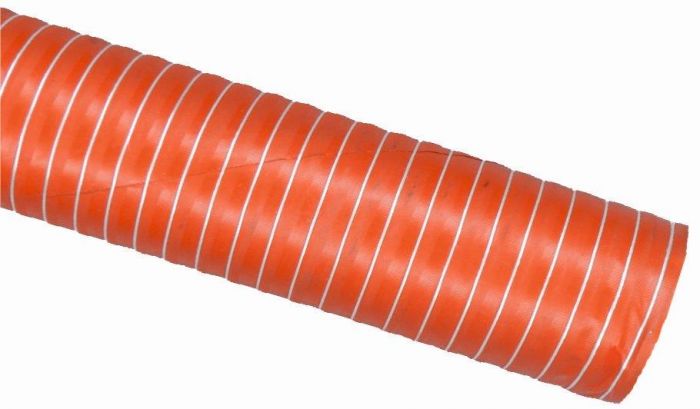

Sil I - medium temperature hose -70°C - +250°C - TSC-Wagner GmbH / medium temperature hoses -70 °C up to +250 °C

1-ply silicone coated glass fibre fabric

temperature range:: -70 °C up to +250 °C, peak +300 °C
material:: - 1-ply silicone coated glass fibre fabric; - steel wire with fixing glass cord
properties:: - good chemical resistance; - smooth inside; - symetrically bending; - lightweight and very flexible
applications:: - hot air hose for drying and combustion plants
delivery forms:: - Ø 13 up to 305 mm; - colour: red with a white cord; - lengths: standard 4 m
on request:: - other colours; - short or enlarged lengths; - custom made: for example with cuffs or ...
other versions:: - Sil I P - 1-ply silicone coated PES fabric; - Sil II - 2-ply silicone coated glass fibre fabric; - Sil II P - 2-ply silicone coated PES fabric
delivery time:: - delivery time standard; - as long as on stock

Order request

pdf data sheet

inner ø at mm	outer ø at mm	bending radius at mm	working pressure at bar	vacuum at mm WS	roll length at m	weight in kg/m	article number	delivery time at days
13	15,0	7	1,500	5400	4	0,075	165-013-1000	about 5-8
19	21,0	9	1,500	5400	4	0,080	165-019-1000	about 5-8
22	24,0	11	1,500	5400	4	0,085	165-022-1000	about 5-8
25	27,0	12	1,400	5400	4	0,120	165-025-1000	about 5-8
32	34,0	16	1,400	5100	4	0,130	165-032-1000	about 5-8
38	40,6	19	1,400	5100	4	0,165	165-038-1000	about 5-8
41	43,6	21	1,300	4600	4	0,177	165-041-1000	about 5-8
44	46,6	22	1,200	4500	4	0,199	165-044-1000	about 5-8
51	53,6	25	1,200	4500	4	0,250	165-051-1000	about 5-8
55	57,6	27	1,100	4500	4	0,270	165-055-1000	about 5-8
57	59,6	28	1,100	4100	4	0,280	165-057-1000	about 5-8
60	62,6	30	1,100	4100	4	0,300	165-060-1000	about 5-8
63	65,6	31	1,100	4100	4	0,320	165-063-1000	about 5-8
65	67,6	33	1,100	4100	4	0,340	165-065-1000	about 5-8
70	73,1	35	1,100	3600	4	0,395	165-070-1000	about 5-8
76	79,1	38	1,000	3600	4	0,410	165-076-1000	about 5-8
80	82,1	40	1,000	3100	4	0,440	165-080-1000	about 5-8
83	86,1	41	1,000	3100	4	0,470	165-083-1000	about 5-8
90	92,1	45	0,900	3000	4	0,490	165-090-1000	about 5-8
95	98,1	47	0,900	2800	4	0,540	165-095-1000	about 5-8
102	105,1	51	0,900	2700	4	0,570	165-102-1000	about 5-8
108	111,1	54	0,800	2300	4	0,680	165-108-1000	about 5-8
110	113,1	56	0,800	2100	4	0,690	165-110-1000	about 5-8
114	117,1	57	0,800	2100	4	0,730	165-114-1000	about 5-8
120	124,1	60	0,800	1900	4	0,760	165-120-1000	about 5-8
127	130,1	63	0,800	1700	4	0,805	165-127-1000	about 5-8
140	143,1	70	0,800	1500	4	0,885	165-140-1000	about 5-8
152	155,6	76	0,600	1400	4	1,050	165-152-1000	about 5-8
160	163,9	80	0,600	1200	4	1,090	165-160-1000	about 5-8
165	168,9	85	0,600	1200	4	1,100	165-165-1000	about 5-8
178	182,1	89	0,600	1000	4	1,210	165-178-1000	about 5-8
180	184,1	95	0,600	1000	4	1,240	165-180-1000	about 5-8
203	207,1	101	0,500	700	4	1,380	165-203-1000	about 5-8
229	233,6	114	0,400	600	4	1,490	165-229-1000	about 5-8
254	258,6	127	0,400	500	4	1,650	165-254-1000	about 5-8
305	309,6	152	0,100	300	4	2,000	165-305-1000	about 5-8
all data at about +23 °C
