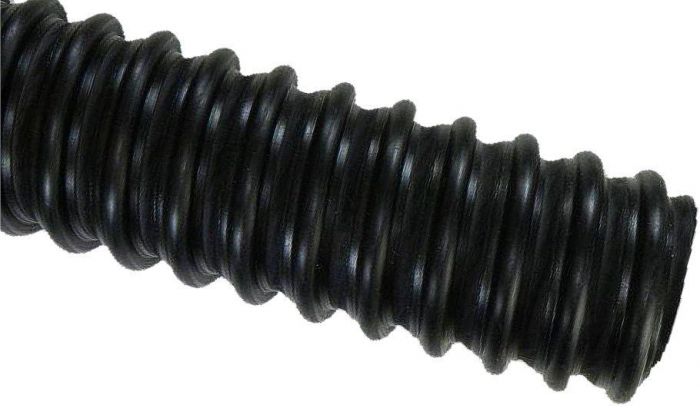

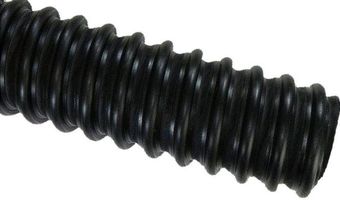

SantoFlex crash - medium temperature hose -70°C - +250°C - TSC-Wagner GmbH / medium temperature hoses -70 °C up to +250 °C

TPE coated polyester fabric, crash proof

temperature range:: -40 °C up to +150 °C
material:: - TPE coated polyester fabric; - nylon spiral
properties:: - crash proof; - very good chemical resistance as fumes of acid, alkalis of solvents; - long term flexible; - uv & ozon resistant; - rot resistant; - lightweight and very flexible
applications:: - for drying and combustion plants; - exhaust systems
delivery forms:: - Ø 40 up to 200 mm; - colour: black; - lengths: 2,5 up to 20 m
other versions:: - for example with blue cover

inner ø at mm	bending radius at mm	vacuum at mm WS	roll length at m	weight in kg/m	article number	delivery time at days
40	80	6600	2,5 - 20	0,250	152-040-1000	about 5-8
50	85	5100	2,5 - 20	0,410	152-050-1000	about 5-8
65	100	3600	2,5 - 20	0,530	152-065-1000	about 5-8
75	105	1500	2,5 - 20	0,690	152-075-1000	about 5-8
90	175	1200	2,5 - 20	0,830	152-090-1000	about 5-8
100	190	1000	2,5 - 20	0,870	152-100-1000	about 5-8
125	250	800	2,5 - 20	1,200	152-125-1000	about 5-8
150	300	600	2,5 - 20	1,440	152-150-1000	about 5-8
200	400	400	2,5 - 20	1,830	152-200-1000	about 5-8
all data at about +23 °C
