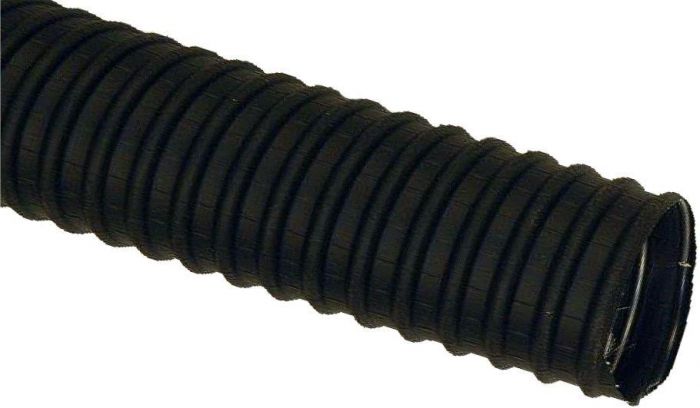

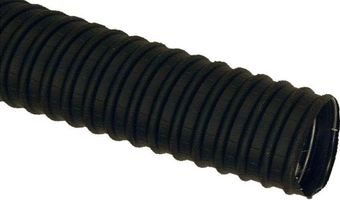

SantoFlex elastic - medium temperature hose -70°C - +250°C - TSC-Wagner GmbH / medium temperature hoses -70 °C up to +250 °C

2-ply TPE coated polyester fabric

temperature range:: -40 °C up to +130 °C
material:: - 2-ply TPE coated polyester fabric; - add. reinforced by yarn; - wall thickness ca. 0,6 mm; - spring stell wire
properties:: - very good chemical resistance as fumes of acid, alkalis of solvents; - good smooth inside; - long term flexible; - uv & ozon resistant; - rot resistant; - lightweight and very flexible
applications:: - hot air hose for drying and combustion plants; - for chemical fumes
delivery forms:: - Ø 25 up to 160 mm; - colour: black; - lengths: 10 m

inner ø at mm	outer ø at mm	bending radius at mm	working pressure at bar	vacuum at mm WS	roll length at m	article number	delivery time at days
25	31	25	1,700	4100	10	152-025-2000	about 5-8
28	34	28	1,600	3600	10	152-028-2000	about 5-8
32	38	32	1,500	3600	10	152-032-2000	about 5-8
35	41	35	1,400	3600	10	152-035-2000	about 5-8
38	44	38	1,400	3100	10	152-038-2000	about 5-8
41	47	41	1,400	3100	10	152-041-2000	about 5-8
44	50	44	1,300	2900	10	152-044-2000	about 5-8
51	57	51	1,300	2900	10	152-051-2000	about 5-8
63	69	63	1,000	2500	10	152-063-2000	about 5-8
70	76	70	0,900	2500	10	152-070-2000	about 5-8
76	82	76	0,800	2000	10	152-076-2000	about 5-8
80	86	80	0,700	1800	10	152-080-2000	about 5-8
89	95	89	0,700	1800	10	152-089-2000	about 5-8
102	108	102	0,600	1700	10	152-102-2000	about 5-8
105	111	105	0,600	1500	10	152-105-2000	about 5-8
110	116	110	0,600	1500	10	152-110-2000	about 5-8
115	121	115	0,600	1200	10	152-115-2000	about 5-8
125	131	125	0,600	1200	10	152-125-2000	about 5-8
130	136	130	0,600	1100	10	152-130-2000	about 5-8
150	156	150	0,500	1100	10	152-150-2000	about 5-8
160	166	160	0,500	1000	10	152-160-2000	about 5-8
all data at about +23 °C
