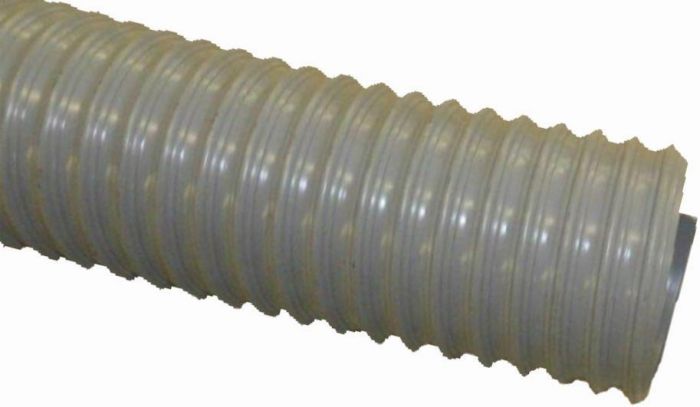

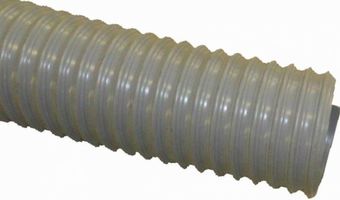

PVCFlex H

Federstahlspirale, z.B. für Flüssigkeitsablauf ...

Einsatztemperatur:
  0 °C bis +70 °C

Material:
- PVC-Wand mit Federstahlspirale

Eigenschaften:
- glatter Strömungskanal
- sehr flexibel und leicht

Einsatz:
- Luft- Dampf- und Staubabsaugung
- Klimatechnik
- Flüssigkeitsablauf

Lieferformen:
- Ø 20 bis 500 mm
- Standardlängen: 10 und 15 m
- Farbe: grau

Weitere Ausführungen:
- Farbe: transparent

Auf Anfrage:
- Kurzlängen
- konfektioniert nach Kundenwunsch
PVCFlex H

weitere Variante

Innen ø in mm Wandstärke in mm Biegeradius in mm Betriebsdruck in bar Unterdruck in mm WS Rollenlänge in m Gewicht in kg/m Artikelnummer Lieferzeit in Tagen
20 1,2 30 2,400 8700 10 / 15 0,220 102-020-5000 circa 5-8
30 1,2 45 2,200 8200 10 / 15 0,360 102-030-5000 circa 5-8
40 1,2 60 2,100 6100 10 / 15 0,410 102-040-5000 circa 5-8
50 1,2 75 1,900 4100 10 / 15 0,590 102-050-5000 circa 5-8
60 1,2 90 1,600 3600 10 / 15 0,700 102-060-5000 circa 5-8
70 1,2 105 1,300 3000 10 / 15 0,820 102-070-5000 circa 5-8
80 1,2 120 1,200 3000 10 / 15 0,940 102-080-5000 circa 5-8
100 1,2 150 1,000 2600 10 / 15 1,280 102-100-5000 circa 5-8
120 1,2 180 0,850 2600 10 / 15 1,450 102-120-5000 circa 5-8
125 1,2 185 0,750 2000 10 / 15 1,600 102-125-5000 circa 5-8
150 1,5 225 0,500 1800 10 / 15 1,950 102-150-5000 circa 5-8
175 1,5 260 0,350 1600 10 / 15 2,280 102-175-5000 circa 5-8
200 1,5 300 0,300 1500 10 / 15 2,600 102-200-5000 circa 5-8
250 1,5 375 0,200 1200 10 / 15 3,730 102-250-5000 circa 5-8
300 1,5 450 0,150 1000 10 / 15 4,470 102-300-5000 circa 5-8
350 1,5 525 0,100 900 10 / 15 5,220 102-350-5000 circa 5-8
400 1,5 600 0,100 800 10 / 15 5,960 102-400-5000 circa 5-8
450 1,5 675 0,080 600 10 / 15 6,710 102-450-5000 circa 5-8
500 1,5 750 0,050 400 10 / 15 7,200 102-500-5000 circa 5-8
alle Daten bei ca. +23 °C
